• 4 PRONG-HALF THREAD 1

4 PRONG-HALF THREAD

Production information
MATERIAL：LOW CARBON STEEL
FINISHED：PLAIN, CR3+ ZINC, YELLOW ZINC, CR3+ YELLOW ZINC, CR3+ BLACK ZINC, BLACK OXIDE

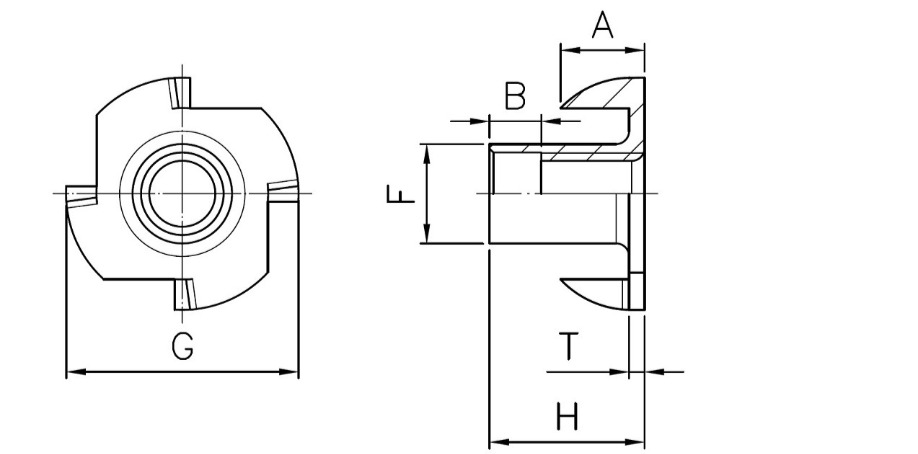

Thread H G T
M5-0.8 6 15 1.0
10 18 1.2
M6-1.0 9 18 1.2
12 18 1.2
14 18 1.2
16 18 1.2
17 18 1.5
M8-1.25 17 22 1.6
20 22 1.6
25 22 1.6
1/4-20 10 18 1.2
12 18 1.2
14 18 1.2
15 18 1.2
16 18 1.2
17 18 1.2
20 18 1.2
25 18 1.2
